Gear cutting machines from MODUL are the safe choice when it comes to precise and efficient machining and manufacturing of gears. MODUL has repeatedly set new standards in innovative gear manufacturing technologies since 1950.
MODUL offers hobbing, skiving, chamfering, deburring gear machining to cover the complete technology range for soft machining of gears. Hobbing and skiving in particular can also be used for hard machining of gears.
MODUL gear cutting machines are successfully used in countless sectors: from automotive and e-mobility, aerospace, agricultural machinery and commercial vehicles trough to rolling stock.
MODUL gear cutting machines are ideal for gears, including those for transmissions and on wheelsets, shafts with multiple gears, gears made from special materials, gears on crankshafts as well as for milling and chamfering / deburring.
MODUL gear cutting machines meet the highest quality and precision demands in the aerospace and automotive industries.
Address
Schulstr. 63
09125 Chemnitz
Germany
E-mail: info@modul-mt.com
Phone: +49 371 5760
Internet: modul-mt.com
Contact person:
Mario Grünberg
Technical Sales
E-mail: mario.gruenberg@modul-mt.com
Phone: +49 371 576-21
Xiaowei Wu
Technical Director
E-mail: xiaowei.wu@modul-mt.com
Phone: +86 135 110 30 350
Products & Services
MODUL offers hobbing, skiving, chamfering, deburring gear machining to cover the complete technology range for soft machining of gears. Hobbing and skiving in particular can also be used for hard machining of gears.
The new Modul CDT and VSM series can be used for oriented machining options. Drilling can therefore be realized alongside gear machining, for example.
In addition to the development and manufacture of leading gear cutting machines, Modul also acts as a contract manufacturer to take on efficient production and soft or hard machining of high-quality gears according to individual requirements – from single parts to large series.
MODUL Gear Hobbing Machines H80 - H200 / H250 - H400
Machines for max. workpiece diameters 80 - 200 / 400 mm and max. module 8 mm
Machining of gears and shafts in vertical workpiece position
Specification for dry or wet machining
Used e.g. in the automotive industry, general mechanical engineering, for pump gears
Used from single piece up to mass production
Specification for manual loading or with integrated flexible automation
Easy integration into production cells or lines
Equipment for machining of hardened gears (skiving)
MODUL Gear Hobbing Machines H600 – H800
Machines for workpiece diameters 600 / 800 mm, max. module 22 mm

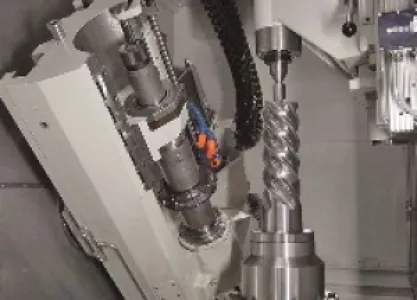

Hobbing and profile milling with disk-type cutters
Special hob head for cutting of air compressor screw rotors
Used e.g. in mining and railway industry general and at general transmission box manufacturers
Compact machine design for quick installation at customer site
Specification for manual loading or with integrated automation

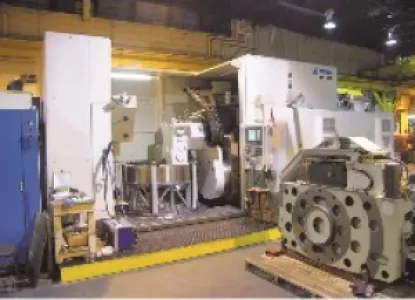

MODUL Gear Hobbing Machines H1500 – H2300
Machines for max. workpiece diameters 1500 / 2300 mm, max. module 28 mm
Bigger workpiece diameters on request
Hobbing and profile milling with disk-type cutters
Machining of gears and shafts, machine specification with or without counter column
Optional milling head for cutting of internal gears, also interchangeable
MODUL Gear Grinding Machines CG260 – CG400
The CG 260 and CG400 gear grinding machines are designed for generating grinding of external gears with max. diameter 260 / 400 and max. module 5 / 10 mm.
The CG260 has a rotary table with two workpiece spindles and integrated dressing unit. The machine is designed for short cycle times and mass production.
The CG400 has a rotary table with one workpiece spindle and integrated dressing unit. The machine is designed for small and medium batch sizes.
MODUL Power Skiving Machines VS250 – CS260
The VS 250 power skiving machine is designed for soft and hard machining of external and internal gears. The max. nominal gear diameter is 250 mm, max total part diameter is 350 mm. The max. module is 6 mm. The VS 250 provides sufficient tool and workpiece table speed and power for the use of carbide tools for the finish machining of hardened gears.
The CS 260 power skiving machine is designed for soft machining of external and internal gears. The max. nominal gear diameter of internal gears is 350 mm, external gears max. 240 mm. The max. module is 5 mm.
Maximum flexibility
The VS 250 is equipped with a 6-position tool changer and can have a workpiece tooth alignment sensor.
Automation
Both machines can be specified for manual loading or with automation by an integrated loading system or robot.
