About us
WTO is specialized in the design and manufacturing of high precision toolholders for metal cutting. In use worldwide our customers achieve the highest productivity due to their precision and performance
As recognized pioneer and leader in its industry, WTO has always set the benchmarks with its inventions and new developments.

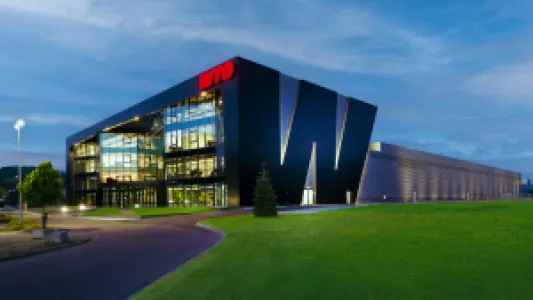

320 experienced and highly qualified employees work at WTO under most modern working conditions. As an active apprenticeship company with more than 30 apprentices and a high internal acquisition rate, WTO is able to secure its future skilled employees and to fulfill its contribution to further educate young adults as well as securing the future of our manufacturing location in Ohlsbach, Germany.
Consequence in new developments - always a step ahead
In different teams, our engineers constantly develop new and innovative products. The results are numerous developments and patented solutions which have pioneered driven tool technology.
There is no substitute for experience
An additional key to success is our focus on state of the art engineering and manufacturing of precision toolholders for more than three decades. That’s what made WTO the leader in driven tool technology.
Address
Neuer Hohdammweg 1
77797 Ohlsbach
Germany
E-mail: info@wto.de
Phone: +49 7803 9392-0
Internet: www.wto-tools.com/
No. 228 Banting Road
Room 109-110, Building 2, Jiuting Town, Songjiang District
201615 Shanghai
China
E-mail: info@wto-asia.com
Phone: +86 21 5789 9638-0
Internet: www.wto-asia.com/
Contact person:
Christoph Schillinger
Sales Director Asia
E-mail: chris.schillinger@wto-asia.com
Phone: +49 173 4802782
Products & Services
Tool Holders for Turning Centers, Swiss Type Turning Centers, Multiple Spindle Turning Centers and Ultra-High Speed Spindles
QuickFlex®
WTO offers for all popular CNC Turning Centers a suitable comprehensive program of static and driven precision toolholders with the quick change system QuickFlex® which offers unique advantages:
Minimal investment by simply clamping the cutting tool directly in the QuickFlex® toolholder using a standard ER collet and maximal expandability by adding the quick change function for reducing tool change time using QuickFlex® adapters.
Broaching Unit for CNC Turning Centers
The state of the art Driven Broaching Unit from WTO for economic manufacturing of oriented keyways and splines with CNC Turning Centers. Use the WTO Driven Broaching Unit for ID and OD broaching simply by rotating the insert holder 180 degrees: Up to 1,000 strokes per minutes, 32 mm and 52 mm working stroke, 10 mm max. groove width at a max. feed per stroke of 0.15 mm.
Power Skiving Unit for CNC Turning Centers
High productive gear machining with CNC Turning Centers by using the innovative Power Skiving Unit from WTO enables a highly productive complete machining of turning parts with ID and OD gears or splines.
The high stiffness and runout accuracy of the WTO Power Skiving Unit guarantees a high surface quality. The hydraulic chuck tool clamping system enables a quick and accurate cutting tool change.
- High stiffness and runout accuracy
- Hydraulic chuck clamping system for high runout accuracy
- Ratio i (n1:n2): 1:1
- Max. RPM (n2): 3,000
- Max. torque M: 63 Nm (32 Nm)
- Max. scale swing ?: ±45°
- Tool clamping dia.: Ø20 (Ø16) DIN1835A
- Coolant supply: internal and external
Gear Hobbing Unit
High productive manufacturing of gears with CNC Turning Centers according quality standard 8 ISO 1328.
The WTO Gear Hobbing unit offers high stiffness and runout accuracy. High flexibility due to interchangeable milling arbors for different cutting tools.
CoolSpeed® MAX
Revolutionary patented spindle technology for rotation speed up to 60,000 rpm. Efficient and process-safe with wireless spindle speed monitoring. CoolSpeed® MAX is a universally applicable ultra-high-speed spindle, driven by two turbines of different sizes and an adjustable number of jets. With the small turbine, maximum speeds of up to 60,000 rpm can be achieved; with the large turbine, CoolSpeed® MAX provides higher torque in the lower speed range. Due to the adjustable number of jets, it is possible to adjust the coolant flow (volume flow) and as a result the maximum performance to the application. CoolSpeed® MAX can therefore be used in a very energy-efficient way and can also be operated with coolant pumps as low as 12 l/min (3.2 gal/min). Applications: Milling, Drilling, Grinding, Deburring, Engraving
